DMG Elevator Parts
DMG S.P.A. is an Italian manufacturer of elevator components based in Rome, it manufactures elevator components such as:
- Elevator Controllers
- Elevator Fixtures
- Push Buttons
- Floor Indicators
- Landing and Car Operating Panels
- LCD/TFT Displays
- Elevator electronic devices, softwares and apps
- Wireless and pre-wired systems
Dardo Elevator Push Buttons By DMG (In Stock)
Minimalist and robust by design, DARDO is the reference pushbutton for lifts installed in more demanding environments, including high-traffic buildings and/or prone to vandalism.
Modern look, minimalist design featuring a wholly reshaped font. Compliant to new EN81-70:2018 color contrast requirement (LRV) Rock-solid design, tested for vandal-proof requirements of EN81-71 Class 1. Two mounting solutions: flush mounting with welded studs or frontal mounting with metal collar. Raised symbol with single illumination or twin Illumination IP67 (flush mounting) or IP64 (frontal mounting).
Marco Elevator Push Buttons By DMG (In Stock)
MACRO, the pushbutton featuring both EN81-70 raised symbol and Braille tactile.
35mm round button, symbol + Braille Compliant to new EN81-70:2018 color contrast requirement (LRV). Frontal mounting (no studs), fastening by jam-nut on 0,7mm to 5mm faceplates. Domed pressel, made of anti-fingerprint shot-peen st/steel Available in Standard st/steel, PVD-coated or Black finishes; Bronze available upon request. Raised symbol with single illumination, double or twin Illumination.

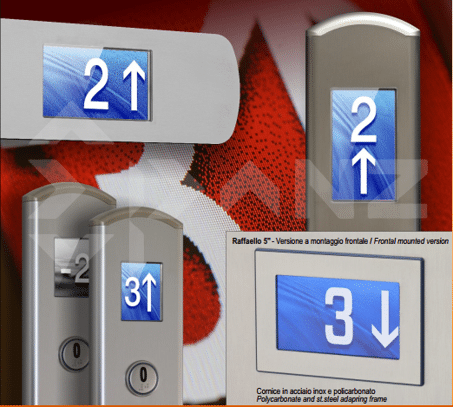

DMG Raffaello TFT Indicator (In Stock)
ALL DMG’s STYLE in this versatile and cost conscious position indicator
Raffaello display comes in many different sizes, it covers several needs. From the small 2’’ or 2.8’’ fitting a Landing Operating Panel to the bigger version in 4.3’’ or 5’’ fitting in a Car Operating Panel:
Disco Elevator Push Buttons By DMG
DISCO is the newest ultra-thin button by DMG, featuring round shape, 15mm thickness and clean design. A perfect match for the Greta series.
Low profile (H=15mm) button & indicator. Frontal mount with back fixing ring. Stainless steel pressel with Braille Round st/steel surround. Single illumination : red, blue, white.
BL Elevator Push Buttons By DMG
Round or square, BL is the basic solution for all purposes.
EN 81-70 push-button with raised symbol and stainless steel available in different shapes. Compliant to new EN81-70:2018 color contrast requirement (LRV). Frontal mounting (no studs) with metal collar, fastening by jam-nut. Pressel: polycarbonate with stainless steel finishes; thermoplastic tactile (raised) illuminated symbol(s). Raised symbol with single, double or twin-light illumination.
Panzer Elevator Push Buttons By DMG
Vandal-resistant turned stainless steel pushbutton with illuminated target.
Robust look, minimalist design Rock-solid design, tested for vandal-proof requirements of EN81-71 Class 2. Pressel AISI 303 turned stainless steel (standard or PVD-coated finishes). Frontal mounting (no studs), fastening by jam-nut. Single illumination IP67 and IP65.
Sherman Elevator Push Buttons By DMG
Made from solid st/steel, Sherman is DMG’s most reliable and vandal-resistant pushbutton.
Modern look, minimalist design. Rock-solid body, tested for vandal-proof requirements of EN81-71 Class 2. Pressel made from AISI 303 turned stainless steel (standard or PVD-coated finishes), available in different shapes. Frontal mounting (no studs), fastening by jam-nut ring. Single or twin illumination. IP44 and IP47.
Sherman Touchless Elevator Push Buttons By DMG
The most iconic and ultra-strong push-button from DMG…now it’s also touch-less!
Limits touched surfaces, protecting against viruses and bacteria Mechanical activation also available if needed Ideal for retrofit with DMG buttons Frontal mounting, AISI 303 turned stainless steel button (Gold PVD also available). Illumination white, LED 12/24V AC/DC, no illumination when not activated Impact protection: IK07, Ingress protection: IP44.
DMG Elevator Landing Operating Panels
Surface mounted panels with shaped screen insert. Flat polished stainless steel top/bottom endings (2mm). 1,5mm thickness (160/200mm faceplate width) and 1mm (90mm faceplate width). New and quick fixing method with a stainless steel sub-plate without visible screws. Hinge opening for checking (160/200mm wide plates).
DMG Elevator Car Operating Panels
MURANO TOUCH is the new line of tempered glass panels featuring DMG’s innovative enhanced capacitive touch button. The clean elegance of dark glass surface is matched to the unparalleled brightness of twin-illuminated touch buttons. Car & hall panels come in either flush or surface mounted version, both defined by a 4-mm black tempered glass. The hidden lock system allows easy car panel opening for inspection. 32x32mm enhanced capacitive touch buttons lay behind the glass surface enriching the ensemble with their brisk, luminous twin-light illumination. All buttons are permanently illuminated in white color, turning to bright red upon activation. Giotto & Raffaello TFT high definition digital position indicators complete the panels with their elegant, black & white graphic theme.
DMG Elevator Controllers
Pitagora 4.0 is the new generation of Controller and prewired electric system created by DMG. At the heart of the system lies the integrated Controller + VVVF inverter, a single, compact device including the DMG motherboard and the Fuji LM2 drive. Completely renewed in both its hardware and software, the Pitagora 4.0 Controller is designed to match the demanding requirements of EN81-20/50. Pitagora 4.0 goes far beyond the code to offer innovative, cloud-based connectivity and a new host of advanced functions and options.
DMG Car Indicator Panel
Model - TFT Matisse , Video and background music playback, USB/IP camera connection DMG proudly presents the new Matisse: the most advanced multimedia display for lifts. Dim.: 7” (155x94mm) 10,1” (223x125mm) 15,6 ”(334x194mm) 18,5” (409x230) 21,5” (477x268) • New graphic templates • Advanced audio and video features • Voice messages at every floor • Possibility to create a remote surveillance system in-car live camera • Autonomous Positioning System to allows the visualization of the lift position and direction independently from the controller. The interface uses the sensors signals installed on the top of car.
DMG Lift Load Control Device (In Stock)
LLEC6 FRM With its integrated load sensor, the LLEC6 FRM allows to accurately control the car weight through the measurement of the car frame deformation. LLEC6 ROP The LLEC6 ROP features a main unit and external load sensors, to be mounted on lift ropes or under the cabin. New design, reduced dimension, removable keyboard with 6 touches and LCD display, easy calibration are only a few of the features making the LLEC6 very practical and quick to install and configure. Main features: - 2 thresholds relays; - Removable programming keyboard with 6 touches and LCD display for easy remote configuration; - Easy calibration with calculation of the installation main parameters; - Measure lock device to avoid device activation during lift movement;
DMG Foot Activated Elevator Call Buttons
Lets you call the lift by activating a call button with your feet The Toe-To-Go (T2G) foot-activated elevator call button allows activation of hall & car station buttons by foot, reducing the risk of transferring germs by creating a hands-free experience - Hands-Free Activation. - Robust Durable Design. - Easy Retrofit for Existing Installation. - Wire in Parallel to Existing Buttons.
DMG Free RIDE app
Free RIDE app assists you in operating the lift from you smart-phone. A simple APP for Smartphones available for free to all users wishing to call a lift without touching the car / hall buttons. FreeRide connects locally with the BlueTooth Receiving Modules placed in the COP/LOP. The screen shows the same button layout as in the actual cabin/hall panel. Visit the site freeride.dmg.it
DMG Banksy Ultra-flat front mounted display
BANKSY is an ultra-flat front mounted position indicator for elevator cars and halls, and it comes in three different models: DB1 (55x55 mm) > Perfect retrofit for older DMG D1 series displays. DB2 (68x71 mm) > Larger version of the DB1, only in the screen size. DB3 (139x77 mm) > Compatible with DMG’s DZ3 front mounted displays. This is the bigger version allowing to comply with the EN81-70 standards. A capacity plate i s also available (same size, not illuminated). JST connection for Pitagora 4.0 prewiring. All Banksy indicators are available in 2 versions: • with car symbols (EN81-28:2018): alarm sent, communication established, overload. • with hall symbols: alarm, car here (only 55x55 and 68x71 versions), out of service.
DMG Greta Car Indicator Panel
Main features of Greta: Plate width: 160 mm / 200 mm Plate depth: 24 mm Plate length: min 600 mm / max 1200 mm Steel Thickness: 1,50 mm St/Steel finishes Scotch Brite FInd out more product and technical details on link below. The perfect display for Greta has recently been developed by DMG, Banksy, it has a modern design and a very competitive price, see attached brochure for more details
DMG Greta Landing Panel For Elevators
Main features of Greta Landing Panels - St/Steel finishes, Scotch Brite. Sizes 70 x 200 x 16,50 mm 70 x 240 x 16,50 mm 100 x 200 x 16,50 mm 100 x 240 x 16,50 mm. The perfect display for Greta has recently been developed by DMG, Banksy, it has a modern design and a very competitive price, see attached brochure for more details
