Formula Systems Elevator Light Rays and Safety Technologies
Formula Systems develops advanced elevator safety and comfort technologies designed to support safer, smoother and more reliable lift operation. The Formula Systems range includes elevator light rays, door safety systems and related technologies for passenger protection and a variety of lift applications.
Founded in 1983, Formula Systems is internationally recognised as a designer and manufacturer of infra-red door protection and speech units.
Formula Systems Elevator Light Rays
Formula Systems elevator light rays are designed to detect people or objects within the elevator doorway, helping to prevent doors from closing when an obstruction is present. They provide an important layer of passenger protection while supporting safe and dependable elevator door operation.
Suitable for elevator installation, modernisation and maintenance applications, Formula Systems light rays provide practical solutions for commercial, residential and other lift environments. Explore the range below to find elevator light rays suited to your project, upgrade or replacement requirements.
Vision Plus
The new Vision Plus elevator door safety solution combines 2D and 3D technology in each edge to deliver highly intelligent door safety technology.
Each edge transmits and receives signals individually which makes detection ability much more concise. Being able to detect signals more accurately will significantly decrease the risk of no-detect when passengers approach from different angles and provides greater reliability when detecting multiple people within the landing area.

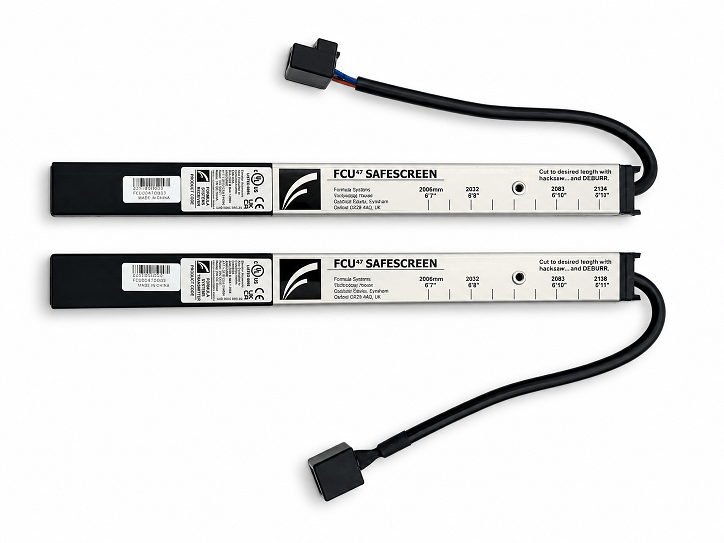

Safescreen
Formula Systems’ SafeScreen product has been designed for the North American market. These edges feature 47 diagonal infra-red (IR) beams in a 30mm wide x 20mm long aluminium housing.
The product is backward compatible with any Formula Systems power supply, to enable companies to upgrade old technology, and can be wired directly into suitable door controllers or the Formula Systems Universal Interface.

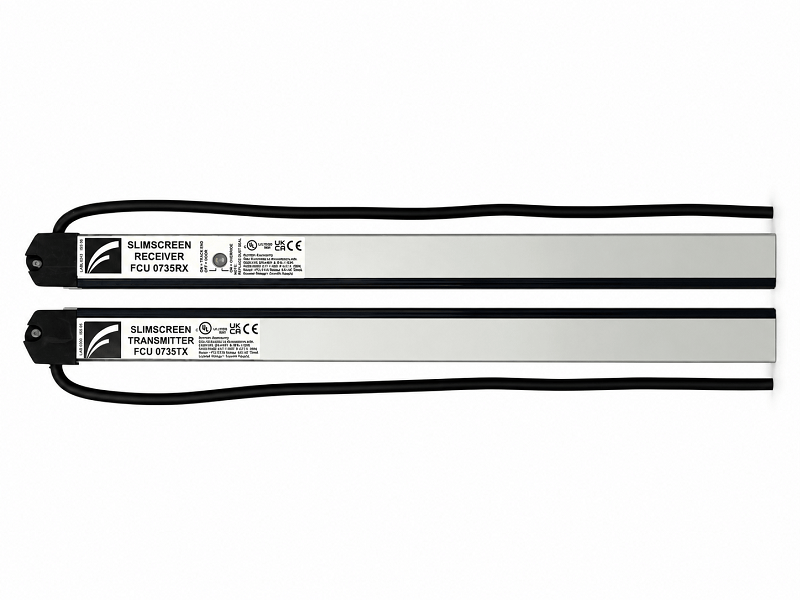

Slimscreen
The new EN81-20 code specifies that door detection systems must enable communication with the controller when in a fault state so that relevant action to reduce the energy in the door closure can be taken and an audible alert message delivered.
The Formula Systems EN81-20 code compliant product is available in both static and dynamic applications. Formula Systems’ standard 35-beam infra-red (IR) curtain is still available for the maintenance market.
Universal Interface
The new EN81-20 code specifies that door detection systems must enable communication with the controller when in a fault state so that relevant action to reduce the energy in the door closure can be taken and an audible alert message delivered.
The Formula Systems EN81-20 code compliant product is available in both static and dynamic applications. Formula Systems’ standard 35-beam infra-red (IR) curtain is still available for the maintenance market.
Formula Systems Elevator Speech Systems
Orator Speech
Orator is a customizable digital elevator messaging system designed to deliver bespoke messages such as elevator floor level information, safety instructions, hazard warnings, travel commentaries and in-store shopping offers.
The digital system delivers exceptional message clarity in a wide range of languages. Customers can select from a comprehensive range of pre-recorded, library messages or create their own messages that can be programmed on-site using Formula Systems’ bespoke software.
Formula Systems Catalogue
Our Commitment
As your distributor of Formula Systems Elevator Light Rays and Safety Technologies in Australia & New Zealand, EPANZ is committed to delivering unparalleled service and support. Our team is here to assist you in selecting the right parts for your specific needs, ensuring a seamless experience from order placement to delivery.
